iPlane: An Information Plane for Distributed Services
iPlane: An Information Plane for Distributed Services
Harsha V. Madhyastha
Department of Computer Science and Engineering, University of Washington
Department of Computer Science, University of Massachusetts Amherst
In this paper, we present the design, implementation, and evaluation
of iPlane, a scalable service providing accurate predictions of
Internet path performance for emerging overlay services. Unlike the
more common black box latency prediction techniques in use today,
iPlane adopts a structural approach and predicts end-to-end path
performance by composing the performance of measured segments of
Internet paths. For the paths we observed, this method allows us to
efficiently predict latency, bandwidth, capacity and loss rates
between arbitrary Internet hosts. We demonstrate the feasibility and
utility of the iPlane service by applying it to several
representative overlay services in use today: content distribution,
swarming peer-to-peer filesharing, and voice-over-IP. In each case,
using iPlane's predictions leads to improved overlay
The Internet by design is opaque to its applications, providing best
effort packet delivery with little or no information about the likely
performance or reliability characteristics of different paths. While
this is a reasonable design for simple client-server applications,
many emerging large-scale distributed services depend on richer
information about the state of the network. For example, content
distribution networks like Akamai , Coral , and
CoDeeN  re-direct each client to the replica
providing the best performance for that client. Likewise,
voice-over-IP systems such as Skype  use relay nodes to
bridge hosts behind NAT/firewalls, the selection of which
can dramatically affect call quality . Peer-to-peer file
distribution, overlay multicast,
distributed hash tables, and many other overlay services
from peer selection based on different metrics of network performance
such as latency, available bandwidth, and loss rate.
Finally, the Internet itself can benefit from more information about
itself, e.g., ISPs can monitor the global state of the Internet for
reachability and root cause analysis, routing instability, and onset of
If Internet performance were easily predictable, its opaqueness might be an
acceptable state of affairs. However, Internet behavior is well-known
to be fickle, with local hot spots, transient (and partial)
disconnectivity, and triangle inequality violations all being quite
common [41,2]. Many large-scale services adapt to this state
of affairs by building their own proprietary and application-specific
information plane. Not only is this redundant, but it prevents new
applications from leveraging information already gathered by other
applications. The result is often sub-optimal. For example, most
implementations of the file distribution tool BitTorrent choose
peers at random (or at best using round trip latency estimates); since
downloads are bandwidth-dependent, this can yield suboptimal download
times. By some estimates, BitTorrent accounts for roughly a third of
backbone traffic , so inefficiency at this
scale is a serious concern. Moreover, implementing an information plane
is often quite subtle, e.g., large-scale probing of end-hosts can
raise intrusion alarms in edge networks as the traffic can resemble a
DDoS attack. This is the most common source of
complaints on PlanetLab .
To address this, several research efforts, such as
IDMaps , GNP , Vivaldi ,
Meridian , and PlanetSeer  have
investigated providing a common measurement infrastructure for
distributed applications. These systems provide only a limited subset
of the metrics of interest, most commonly latency between a pair of
nodes, whereas most applications desire richer information such as
loss rate and bandwidth. Second, by treating the Internet as a black
box, most of these services abstract away network characteristics and
atypical behavior--exactly the information of value for
troubleshooting as well as improving performance. For example, the
most common latency prediction methods use metric embeddings which are
fundamentally incapable of predicting detour paths as such paths
violate the triangle inequality [41,56]. More importantly,
being agnostic to network structure, they cannot pinpoint failures,
identify causes of poor performance, predict the effect of network
topology changes, or assist applications with new functionality such
as multipath routing.
In this paper, we move beyond mere latency prediction and develop a
service to automatically infer sophisticated network behavior. We
develop an Information Plane (iPlane) that continuously performs
measurements to generate and maintain an annotated map of the Internet
with a rich set of link and router
attributes. iPlane uses structural information such as the
router-level topology and autonomous system (AS) topology to predict paths
between arbitrary nodes in the
Internet. The path predictions are combined with measured
characteristics of path segments to predict end-to-end path properties for a number of
metrics such as latency, available bandwidth, and loss rate.
iPlane can also analyze isolated anomalies or obtain a global view of
network behavior by correlating observations from different parts of
iPlane is designed as a service that distributed applications can
query to obtain information about network conditions. Deploying
iPlane as a shared service (as opposed to providing a library)
has several benefits. First, a common iPlane can exploit temporal
and spatial locality of queries across applications to minimize
redundant measurement overhead. Second, iPlane can selectively
refresh its knowledge
of the IP address space based
on real query workloads. More generally, iPlane can
assimilate measurements made on behalf of all of its clients as well
as incorporate information reported by clients to develop a more
comprehensive model of Internet behavior over time. We note that all
of these arguments have been recognized
before [48,8,53,23], however a
convincing validation has remained starkly absent.
Our primary contribution is in demonstrating the feasibility of a useful
iPlane, e.g., we can infer with high accuracy an annotated map of the
Internet every six hours with approximately Kbps of measurement traffic per PlanetLab node.
In addition, we develop:
- A common structural model to predict path properties.
- A measurement infrastructure that is deployed on every active
PlanetLab site and almost a thousand traceroute and Looking Glass
server vantage points (with a lower intensity of probing).
- A toolkit for using BitTorrent swarms to measure links.
- Case studies of popular systems such as CDNs,
peer-to-peer file swarming, and VoIP.
We show measurable benefits of using iPlane
for each of these applications.
iPlane is a modest step towards the vision of a knowledge
plane pioneered by Clark et al. . iPlane
supplies information about the network and leaves the task of
adapting or repairing to the client. Nevertheless, the collection, analysis, and distribution of
Internet-scale measurement information is itself a challenging systems
engineering problem and the focus of this paper. The goal of gathering a
complete picture of the Internet has been recognized earlier in
. Our goal is more modest--to gather a
coarse-grained map of the Internet sufficient to be of utility in
improving overlay performance.
We start by discussing the requirements of an Information Plane for
distributed services before presenting our design that meets these
iPlane should accurately estimate a rich set of performance metrics such as
latency, loss-rate, capacity, and available bandwidth.
- Wide coverage: iPlane must predict
the performance of arbitrary Internet paths.
Many currently deployed prediction services, such as
RON  and , limit their focus
to intra-overlay paths.
- Scalability: iPlane should not impose an undue
communication load on its measurement infrastructure.
- Unobtrusiveness: Active probes of end-hosts must be
coordinated and performed in an unobtrusive manner in order to
minimize the possibility of raising intrusion detection alarms.
A summary of techniques used in iPlane.
Obtain prefixes from Routeview's BGP snapshot and cluster
groups of prefixes with similar routes.
PlanetLab nodes probe all targets, while Traceroute/Looking Glass servers
issue probes to a small subset of the targets.
capture path diversity
Identify network interfaces that are in the same AS and geographically colocated.
build structured topology,
Schedule measurements of link attributes to PlanetLab nodes such that each
link is probed by the vantage point closest to it.
PlanetLab nodes measure the loss rate,
capacity, and available bandwidth over a subset of paths in the Internet core.
Leverage existing applications to discover the structure
and performance of edge networks.
access link properties
Compose segments of observed or reported paths to
predict end-to-end paths between a pair of nodes.
iPlane is designed to be deployed as an application-level
overlay network with the overlay nodes collectively coordinating the
task of generating and maintaining an ``atlas'' of the Internet. The
atlas is both extensive and detailed--it comprises the topology
of the Internet core and the core's connectivity to representative
targets in the edge networks, complete with a rich set of static
attributes (such as link delay and link capacity), and recent
observations of dynamic properties (such as routes between network
elements, path loss rates, and path congestion). iPlane uses
systematic active measurements to determine the attributes of the
core routers and the links connecting them. In addition, the system
performs opportunistic measurements by monitoring actual
data transfers to/from end-hosts participating in BitTorrent swarms,
thereby exposing characteristics of the edge of the network that
typically cannot be obtained from one-way probing, e.g., capacities of
Since it is impractical to probe every Internet end-host to generate
the atlas, we cluster end-hosts on the basis of
BGP atoms . We approximate a client's performance by a
representative target in the same atom as the client. If the client
desires greater prediction accuracy, it can voluntarily perform some
probes and contribute the paths that it discovers to iPlane;
multi-homed clients can benefit from such an operational model.
iPlane uses its collected repository of observed paths to predict
end-to-end paths between any pair of end-hosts.
This prediction is made by carefully composing partial
segments of known Internet paths so as to exploit the similarity of
Internet routes , i.e., routes from two nearby
sources tend to converge when heading to the same destination.

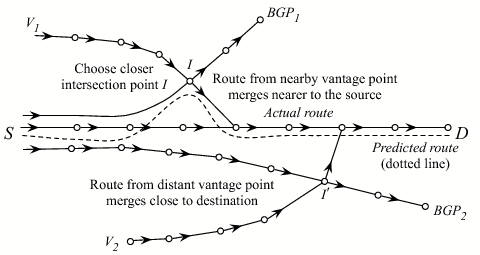

iPlane predicts a path by splicing a short path segment from the
source to an intersection point from which a path going to the
destination has been observed in the atlas. To determine intersections
between paths, we cluster interfaces that are owned by the same AS and
reside in the same PoP, and deem two paths to have intersected if they
pass through the same cluster.
Once a path is predicted, iPlane simply composes
the measured properties of the constituent path segments to predict the
performance of the composite path. For instance, to make a latency
prediction, iPlane simply adds the latencies associated
with the individual path segments. Or, to predict the end-to-end bandwidth,
iPlane computes the minimum of the bandwidth measured of each of the
inter-cluster links along the predicted path, and the bandwidth of the
client's access link, if available.
The rest of this section describes the techniques used to
develop a functional iPlane that has wide coverage, incurs modest
measurement load without unduly sacrificing coverage or detail, and uses
topology structuring techniques to enable efficient measurement and
accurate inference. The techniques are summarized in
2.2 Mapping the Internet Topology
iPlane requires geographically distributed vantage points to map
the Internet topology and obtain a collection of observed paths.
PlanetLab servers, located at over sites around the world,
serve as the primary vantage points. We also enlist the use of
public Looking Glass/Traceroute servers for
low-intensity probing. Further, we are currently exploring the option of
using data from DIMES , a system for
aggregating low intensity measurements from normal PCs. Our primary tool for
determining the Internet
topology is traceroute, which allows us to identify the network
interfaces on the forward path from the probing entity to the
destination. (On PlanetLab, we use an optimized version of the
tool to reduce measurement load.)
destinations to probe and how to convert the raw output of
traceroute to a structured topology is nontrivial, an issue we address
2.2.1 Probe Target Selection
BGP snapshots, such as those collected by
RouteViews , are a good source of probe targets.
iPlane achieves wide coverage for the topology mapping process
by obtaining the list of all globally routable prefixes in BGP
snapshots, and choosing within each prefix a target .1 address
that responds to either ICMP or UDP probes. A .1 address
is typically a router and is hence more likely to respond to probes than
To reduce measurement load, iPlane
clusters IP prefixes into BGP atoms  for generating the target list. A BGP atom is a set
of prefixes, each of which has the same AS path to it from any
given vantage point.
BGP atoms can
be regarded as representing the knee of the curve with respect to
measurement efficiency--probing within an atom might find new routes,
but it is less likely to do so .
This task of determining a representative set of IP addresses is performed
relatively infrequently, typically once every two weeks.
iPlane uses the PlanetLab nodes to perform exhaustive and
periodic probing of the representative targets.
addition, iPlane schedules probes from public traceroute servers
to a small random set of BGP atoms, typically making a few tens of
measurements during the course of a day. The public traceroute
servers serve as a valuable source of information regarding local
routing policies. Note that in the long run, a functioning iPlane may actually serve to decrease the load on the public traceroute
servers as iPlane,
rather than the traceroute servers themselves, can be consulted
for information on the Internet topology.
2.2.2 Clustering of Interfaces
Traceroute produces a list of network interfaces on the path
from source to destination. However, interfaces on the same
router, or in the same PoP, may have similar behavior. Hence,
we partition network interfaces into
``clusters'' and use this more compact topology for more in-depth
measurements and predictions. We define the clusters to include
interfaces that are similar from a routing and performance
perspective, i.e., interfaces
belonging to the same PoP and interfaces within geographically nearby
portions of the same AS .
Note that this
clustering is performed on network interfaces in the Internet core,
whereas the clustering of prefixes into BGP atoms was performed for
end-host IP addresses. In fact, clustering addresses in the same prefix
will be ineffective in the core as geographically distant interfaces are
often assigned addresses in the same prefix.
First, iPlane identifies interfaces that belong to the same router.
Interfaces that are potential alias candidates are identified using two
different techniques. Employing the Mercator
technique, UDP probes are sent to a high-numbered port on every router
interface observed in traceroutes. Interfaces that return responses
with the same source address are considered as possible aliases.
In addition, candidate alias pairs are
also identified using the fact that interfaces on either end of a long-distance
link are usually in the same /30 prefix.
Candidate pairs that respond with similar IP-ID values to the UDP
probes, and also respond with similar TTLs to the ICMP probes are deemed to be
aliases. In one of our typical runs, of the 396,322 alias candidate pairs yielded by the Mercator
technique, 340,580 pairs were determined to be aliases. The
918,619 additional alias candidate pairs obtained using the /30
heuristic yielded another 320,150 alias pairs.
Second, iPlane determines the DNS names assigned to as many
network interfaces as possible. It then uses two sources of information -
Rocketfuel's undns utility  and data from the
Sarangworld project  - to determine the locations of these
interfaces based on their DNS names. This step alone does not suffice
for our purpose of clustering geographically co-located interfaces
because: 1) several interfaces do not have a DNS name assigned to
them, 2) rules for inferring the locations
of all DNS names do not exist, and 3) incorrect locations are inferred for
interfaces that have been misnamed. For IPs whose locations
can be inferred from DNS names, the locations
are validated by determining if they are consistent with the
measured delays from traceroutes .
Third, to cluster interfaces for which a valid location was not determined,
we develop an
automated algorithm that clusters interfaces based on responses received from
them when probed from a large number of vantage points. We probe all
interfaces from all of iPlane's PlanetLab vantage points using ICMP ECHO probes.
We use the TTL value in the response to estimate the
number of hops on the reverse path back from every router to each of our
vantage points. Our hypothesis is that routers in the same AS that are
geographically nearby will have almost identical routing table entries and
hence, take similar reverse paths back to each vantage point.
To translate this hypothesis into a clustering algorithm,
each interface is associated with a reverse path
length vector. This is a vector with as many components as the number
of vantage points, and the component is the length of the
reverse path from the interface back to the vantage point.
We define the cluster distance between two vectors to be the L1
distance--the sum of the absolute differences between corresponding
components, divided by the number of components.
In our measurements, we have
observed that the cluster distance between reverse path length
vectors of co-located routers in an AS is normally less than .
Based on the metric discussed above, we can now present a technique
for assigning interfaces without known locations to clusters.
We start by initializing our clusters
to contain those interfaces for which a location has been determined.
Interfaces that have been determined to be co-located in an
AS are in the same cluster.
For each cluster, we compute the median reverse path length vector,
whose component is the median of the components of
the vectors corresponding to all interfaces in the cluster.
We then cluster all interfaces that do not belong to any
cluster as follows. For each interface, we determine the cluster in the same AS
as the interface, with whose median vector the interface's vector has
the least cluster distance. If this minimum cluster distance is less
than , the interface is added to the chosen cluster, otherwise a new
singleton cluster is created. This clustering algorithm, when executed on a
typical traceroute output, clusters 762,701 interfaces into
54,530 clusters. 653,455 interfaces are in 10,713
clusters of size greater than , while 21,217 interfaces are in
2.3 Measuring the Internet Core
After clustering, iPlane can operate on
a compact routing topology, where each
node in the topology is a cluster of interfaces and each link connects two clusters.
iPlane then seeks
to determine a variety of link attributes that can be used to predict
path performance. To achieve this goal, a centralized agent is
used to distribute the measurement tasks such that each vantage point
is assigned to repeatedly measure only a subset of the links.
The centralized agent uses the compact routing topology to
determine the assignments of measurement tasks to vantage points,
communicates the assignment, and monitors the execution of the tasks.
Only iPlane infrastructure nodes (namely, PlanetLab nodes) are used for these
2.3.1 Orchestrating the Measurement Tasks
There are three objectives to be satisfied in assigning measurement
tasks to vantage points. First, we want to minimize the measurement
load by measuring each link attribute from only a few vantage points
(we employ more than one to correct for measurement noise).
Second, the measurement should be load-balanced
across all vantage points, i.e., each vantage point should
perform a similar number of measurements. Third, in order to measure
the properties of each link as accurately as possible, we measure
every link in
the topology from the vantage point that is closest
We have developed a novel ``frontier'' algorithm to perform the
assignment of tasks to vantage points. The algorithm works by growing
a frontier rooted at each vantage point and
having each vantage point measure only those links that are at its
frontier. The centralized agent performs a
Breadth-First-Search (BFS) over the measured topology in parallel from
each of the vantage points.
Whenever a vantage point is taken up for
consideration, the algorithm performs a single step of the BFS by
following one of the traceroute paths originating at the vantage point. If
it encounters a link whose measurement task has been assigned already
to another vantage point, it continues the BFS exploration
until it finds a new link that has not been seen before.
continues until all the link measurements have been assigned to some
vantage point in the system.
The centralized agent uses the above algorithm to determine the
assignment of tasks and then ships the tasklist to the respective vantage
points. Each target link is identified by the traceroute path that
the vantage point can use to reach the link and by its position
within the traceroute path. If a vantage point is no longer capable
of routing to the link due to route changes, the vantage point reports
this to the centralized agent, which in turn reassigns the task to a
different vantage point.
Most link attributes, however, cannot be directly determined by the
For instance, when measuring loss rates,
a vantage point can only measure the loss rate associated
with the entire path from the vantage point to the target link; the
loss rates of individual links have to be inferred as a
Once all vantage points
report their measurements back to the centralized agent, the agent can
perform the BFS style exploration of the topology to infer link
properties in the correct order.
For instance, assume that a vantage point
had probed the path and obtained a (one-way) loss rate
measurement of for the entire path. The centralized agent can then infer
the loss rate along the link after inferring the loss
rates for each of the links in , composing these individual
loss rates to compute the loss rate along the segment , and then calculating the loss rate for
using the equation
Since the link property inference is performed as a BFS traversal, we
are guaranteed that loss rates for all the links along
have been inferred before we consider the link .
In our current system, the centralized agent schedules and monitors
roughly 2700K measurements per day, a management load that a
centralized agent can easily bear. Fault tolerance is an issue,
but is addressed by a simple failover mechanism to a standby controller.
Note that the processed data is served to applications from a replicated
database to ensure high availability.
2.3.2 Measurement of Link Attributes
We next outline the details of the loss rate, bottleneck
capacity and available bandwidth measurements performed from each
research efforts have proposed specific ways to measure each of these
properties; our goal is to integrate these techniques into a useful
Latencies of path segments can be derived directly from
the traceroute data gathered while mapping the topology, and therefore
do not need to be measured explicitly.
Loss Rate Measurements:
We perform loss rate measurements along path segments from vantage
points to routers in the core by sending out probes and determining
the fraction of probes for which we get responses.
We currently use
the simple method of sending TTL-limited singleton ICMP
probes with a 1000-byte payload. When the probe's TTL value expires
at the target router, it responds with a ICMP error message, typically
with a small payload. When a response is not received, one cannot
determine whether the probe or the response was lost, but there is
some evidence from previous studies that small packets are more likely
to be preserved even when routers are congested .
We therefore currently attribute all of the packet loss to the forward path;
the development of more accurate techniques is part of ongoing work.
We perform capacity measurements using algorithms initially proposed
by Bellovin  and Jacobson  that vary the packet
size and determine the delay induced by increased packet sizes. For
each packet size, a number of probes (typically 30-40) of
that size are sent to an intermediate router and the minimum
round-trip time is noted.
The minimum round-trip time observed over many
probes can be regarded as a baseline path latency measurement with
minimal queueing delays.
By performing this experiment for different packet
sizes, one can determine the increased transmission cost per byte.
When this experiment is performed for a sequence
of network links in succession, the capacity of each link can be
Note that our capacity measurements may underestimate a cluster link
if it consists of multiple parallel physical links.
Available Bandwidth Measurements: Once we have
link capacities, we can probe for available bandwidth along path
segments using packet dispersion techniques such as
Spruce , IGI , Pathload . A
simple measurement is performed by sending a few, equally spaced,
short probes at the believed bottleneck capacity of the path segment, and
then measuring how much delay they induce. The slope of the delay
increase will indicate how
much background traffic arrived during the same time period as the
probe. For instance, if the probes are generated with a gap of
through a path segment of capacity and if the
measured gap between between the probe replies is , one
can estimate the available bandwidth as
. An important detail
is that the packets have to be scheduled at the desired spacing, or
else the measurement is not valid. Fortunately, even on heavily
loaded PlanetLab nodes, it is possible to realize the desired
scheduling most of the time.
2.4 Opportunistic Edge Measurements
To provide a comprehensive data set on which to infer current
properties of paths to end-hosts, it is necessary for iPlane to
maintain an up-to-date map of the network that extends to the very edge.
However, the measurement techniques outlined above are unlikely to work
as they, as most other active measurements,
require end-hosts to respond to unsolicited
ICMP, UDP or TCP packet probes.
Also, measurements to end-hosts are frequently misinterpreted by intrusion
detection systems as attacks. Hence, we pursue an opportunistic
approach to data collection--measuring paths to end-hosts while
interacting with them over normal connections. We participate in the popular
file-distribution application BitTorrent  and gather
measurements from our exchanges with the peers in this swarming system.
Note that BitTorrent has the further desirable property that anyone can
connect to anyone, allowing us to arrange measurements of multiple paths to
participating edge hosts.
BitTorrent is used daily by thousands of end users to distribute large
files. BitTorrent is one example of a
large class of swarming data distribution tools.
in several BitTorrent swarms, we have the opportunity to
interact with a large pool of end-hosts. We measure properties of the paths
to peers while exchanging data with them as part of the swarming
We currently gather two kinds of measurements using our opportunistic measurement
- Packet traces of TCP flows to end-hosts. These traces provide
information about packet inter-arrival times, loss rates, TCP retransmissions
and round trip times. We use the inter-arrival times between data packets
to measure bottleneck bandwidth capacities of paths from clients to vantage
points, as described further in Section 3.
- Traceroutes to end-hosts. When a peer connects to
our measurement node, we conduct a traceroute to that host. We record this
data and add it to our atlas.
2.5 Performance Prediction
Next, we describe how to predict path properties between an arbitrary
pair of nodes based on the above measurements. The prediction proceeds
in two steps. First, we predict the forward and reverse paths
connecting the two nodes. Second, we aggregate measured link-level
properties to predict end-to-end path properties.
The path from to is obtained by composing a path
from with a path going into from a vantage point close to
(). and are destinations in two random prefixes to
which performs traceroutes.
Path Prediction We use a technique we earlier
developed  based on composing observed path
segments to predict unknown paths. Consider a source and
destination . If is a vantage point, then we simply return the
measured path from to . Else, we determine an appropriate
intersection point in the measured subgraph of the Internet such
that--(a) the AS hop count of the path is minimum, and (b)
the latency from to the point where the path exits the
first-hop AS is minimum, in that order (Figure 1). The underlying principle is similarity of
routes, i.e., with a sufficiently large number of vantage points, the
path to a destination () from any node () will be similar to the
path from a vantage point or router () located nearby. Condition
(a) encodes the default path selection criterion used by BGP in the
absence of conflicting local preference policies. Condition (b) encodes
the default early exit intradomain routing policy.
Note that the above
technique is guaranteed to return a path (albeit an inflated one), since
every path of the form , for each vantage point , belongs to
the measured subgraph.
As we noted earlier, we make measurements to BGP atoms rather than
to all destinations.
In , we note that adding a small number of
measured paths originating from the client significantly improves the
prediction accuracy for paths sourced at . Using these measurements,
the path from to is to to 's atom to . If there
is a measurement of the last hop from 's atom to , we use it;
otherwise, we estimate it using a representative node in the atom
(e.g., from BitTorrent measurements).
Briefly summarizing the main results from , we
can predict the AS path exactly right for around of the
paths evaluated, and the latency estimates obtained using this model
were significantly better than those yielded by
Vivaldi , a popular network coordinate system.
Path Properties Given predicted paths as above, we can
estimate end-to-end properties by aggregating link-level properties.
For example, we predict TCP
transfer time using widely accepted models [35,5].
For this, we separately predict the forward and reverse paths between the
source and the destination. The latency on the
forward path - is estimated as the sum of the latency estimates for
each segment. We similarly estimate the latency along the
reverse path, and then compute the RTT between the two end-hosts to be
the sum of our latency estimates along the forward and reverse paths. The
loss rate on the predicted forward path is estimated from the
probability of a loss on any of its constituent links while bandwidth is
the minimum value across the links. The access link capacities of these
end-hosts, if available based on BitTorrent measurements to hosts in the
same prefixes, are also used to estimate the end-to-end bottleneck
Recently, He et al.  argued that the best way to accurately predict
TCP throughput is to send TCP flows and use history-based predictors.
Although we have not implemented these, our use of
passive BitTorrent logs is amenable to incorporating such predictors.
iPlane allows untrusted users to contribute measurements,
so it is vulnerable to attacks aimed at polluting its
information. For instance, a client can claim to have better
connectivity than actuality in order to improve its position
within an overlay service that uses iPlane.
iPlane reduces this risk
by using client data only for those queries
issued by the same client; falsified measurements will not affect
the queries issued by other clients.
We do however trust traceroute servers to provide unbiased data,
though the traceroute
servers are not under our control. An
ISP hosting a traceroute server might bias its replies from the
server to better position its clients, for example, to attract
more BitTorrent traffic and thereby
generate more revenue. We have the ability to use verification to
address this - compare the results from multiple vantage points for
consistency - but have not implemented it yet.
2.7 Query Interface
The query interface exported by iPlane must be
carefully designed to enable a diverse range of applications. Our current
implementation of the query interface exposes a database-like view of
path properties between every pair of end-hosts in the Internet. For
every source-destination pair, there exists a row in the view
with iPlane's predicted path between these hosts and the predicted
latency, loss rate, and available bandwidth along this path. Any query
to iPlane involves an SQL-like query on this view - selecting some
rows and columns, joining the view with itself, sorting rows based on
values in certain columns, and so on.
The database view is merely an
abstraction. iPlane does not compute apriori the entire table comprising
predictions for every source-destination pair; instead it derives
necessary table entries on-demand.
For example, a CDN can determine the closest replica to
a given client by selecting
those rows that predict the performance between the client
and any of the CDN's replicas.
A suitable replica can then be determined by sorting these
rows based on a desired performance metric. To choose a good detour
node for two end-hosts to conduct VoIP, the rows
predicting performance from the given source
can be joined with the set of rows predicting performance
for the given destination. A good detour is one
that occurs as the destination in the first view and
as the source in the second view, such that the composed
performance metrics from these rows is the best. These
queries can be invoked in any one of the following ways.
Download the Internet Map:
We have implemented a library that provides an interface
to download the current snapshot of the entire annotated
Internet map or a geographic region,
to process the annotated map, and to
export the above SQL-like view.
An application simply links against and invokes
the library locally.
Applications that do not wish to incur the costs of downloading the
annotated map and keeping it up-to-date, can query a remote iPlane
service node using non-local RPCs.
Note that clients of CDNs, such as
Akamai and Coral, typically tolerate some indirection overhead
in determining the nearest replica. To support such applications,
iPlane downloads the annotated map of the Internet to every PlanetLab
site, and then provides an RPC interface to the data.
Further, as some applications might need to make multiple
back-to-back queries to process iPlane's measurements, we assist the
application in lowering its overheads by allowing it to upload a
script that can make multiple local invocations of iPlane's library.
The current implementation requires that this script be written in
Ruby, as Ruby scripts can be executed in a sandboxed environment and
with bounded resources . The output of the script's
execution is returned as the response to the RPC.
Apart from downloading the Internet graph and issuing
on-the-fly queries, a third model that we plan to support
is a publish-subscribe interface that allows users to register
for information updates about specific portions of the Internet graph.
This interface allows users to subscribe to their
``view'' of the Internet, i.e., all paths originating from a user to
all BGP atoms, or insert triggers to be
notified of specific events, e.g., when a critical link fails.
Implementing such an interface is part of our future work.

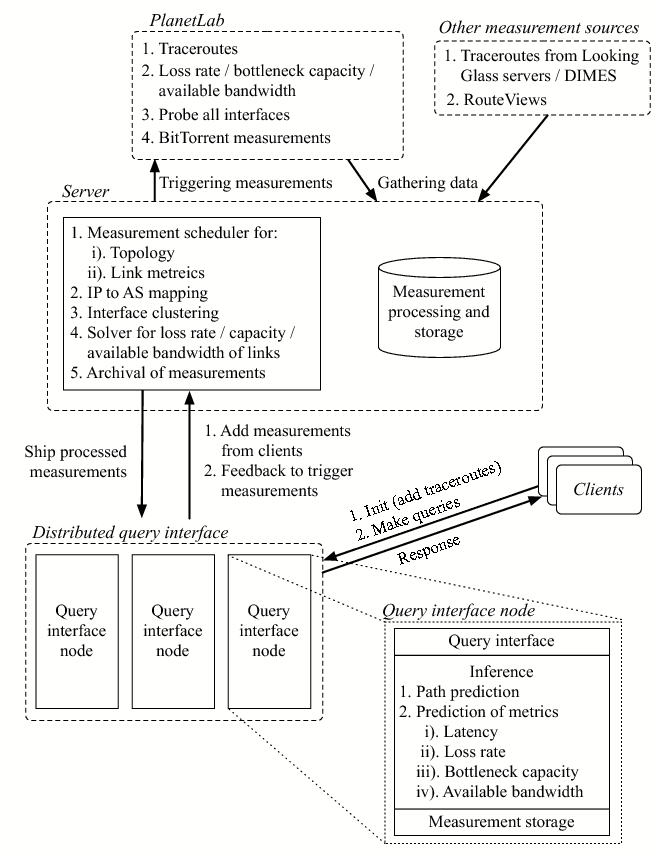

Overall architecture of iPlane.
The various components in our current implementation of iPlane, and the
interaction between these components is depicted in
3 System Setup and Evaluation
In this section, we present details of our deployment of iPlane.
We provide an overview of the measurements we conducted
as part of our
deployment. We also outline the tests we conducted to validate our
measurements. All of our validation is performed on paths between
PlanetLab nodes; our goal in the future is to use client measurements
(e.g., DIMES ) to broaden the validation set.
The number of PlanetLab nodes used varies with each experiment
because of the variable availability of some nodes.

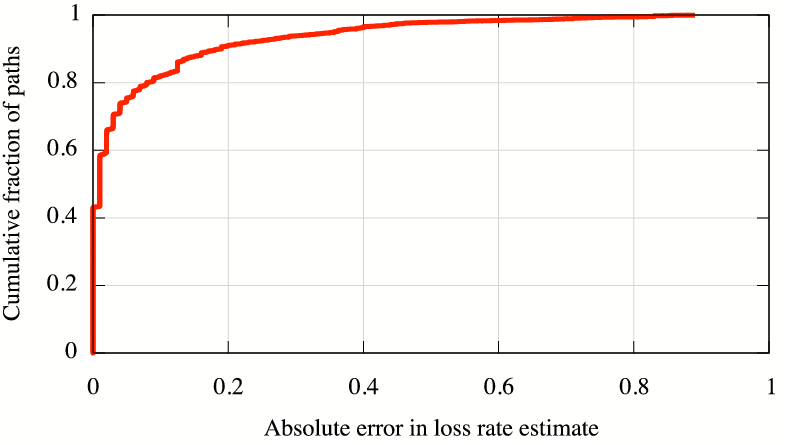

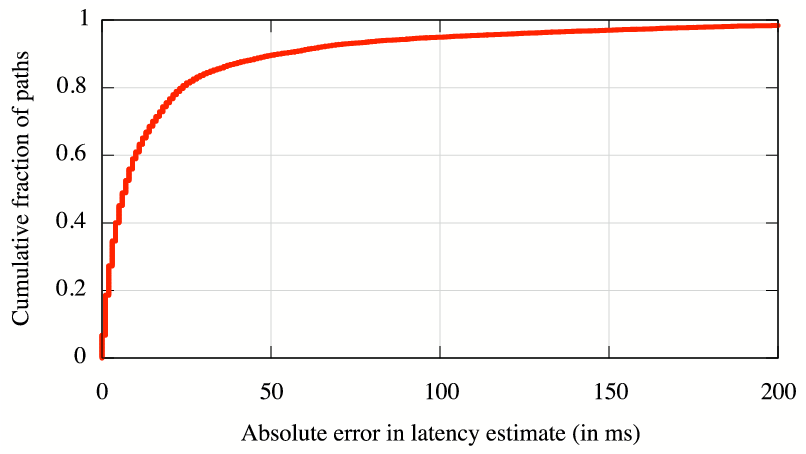

Distribution of errors in (a) latency, and (b) loss rate estimation.
We first consider results from a typical run of our mapping process.
We performed traceroutes from PlanetLab nodes in distinct sites.
The targets for our trace-routes were addresses
in each of 91,498 prefixes determined from the RouteViews BGP
snapshot, though measuring paths to one address in each BGP atom should
suffice. We probed all interfaces observed in our measured topology with
UDP and ICMP probes, and clustered the interfaces based on their
Once a map of the Internet's core was gathered, we employed our
``frontier'' BFS algorithm to determine paths to be probed from each of
the PlanetLab nodes present at the sites used;
for link metrics, we use multiple nodes per
site. To determine the properties of 270,314
inter-cluster links seen in our measured topology, each vantage point was
assigned to measure only around 700 paths. Loss rate, capacity,
and available bandwidth
were measured for each of the assigned paths. These measurements
were then processed to determine properties for every
cluster-level link in our measured topology.
To validate the predictive accuracy of iPlane,
properties of paths between PlanetLab nodes with the corresponding
values predicted by iPlane. We measured the latency and loss
rate along every path beween any two PlanetLab nodes. To predict the
performance, we assume that we have the probe information collected by the
other sites, excluding the source and destination under consideration.
We then added 10 traceroutes from the source and destination to random
nodes to simulate the behavior of participating clients.
Each experiment was performed
independently to ensure no mixing of the measurement and validation set.
Figure 3 compares the latency and loss
rate estimates made by iPlane with the true values.
For of paths, iPlane's latency estimates have error less than
ms, and for of paths, loss rate estimates have error less
Rank correlation coefficient between actual and predicted TCP throughput.
Further, we evaluated how predictive of path performance are iPlane's
estimates of latency and loss rate in combination.
The desired property of
these estimates is that they help distinguish between paths with good and
bad performance. We compared the order of paths from each PlanetLab node
of actual and predicted performance. For each node, we ranked all other
nodes in terms of TCP throughput, considering throughput to be
inversely proportional to latency and the square root of loss
rate . These rankings were computed independently using
measured path properties and using iPlane's predictions for these

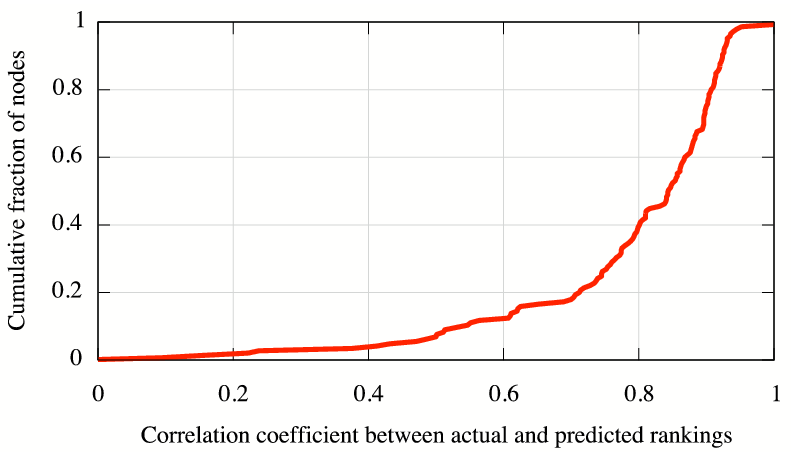

properties. Figure 4 plots the
correlation coefficient between the actual and iPlane predicted rankings
across all PlanetLab nodes. For of the nodes, the correlation
coefficient is greater than .
Complexity of measurements techniques used in iPlane based on
the following assumptions. A UDP/ICMP probe is 40 bytes. A traceroute
incurs a total of 500B on average. The per-link loss rate,
available bandwidth, and capacity measurements require
200KB, 100KB, and 200KB of probe traffic respectively.
|| Tool / Technique
|| Probing rate / node
Once a day
vantage points K atoms -- Kbps
UDP probes for source-address-based alias resolution, ICMP-ECHO probes for RTTs and reverse
vantage points K interfaces -- Kbps
``frontier" algorithm applied to cluster-level
topology for path assignment, pathchar for bandwidth capacity
Once a day
vantage points links -- Kbps
Loss rate and available bandwidth measurements
``frontier" algorithm for
path assignment, TTL-limited probes for loss rate, spruce for available
links -- Kbps
We now discuss the measurement load required to generate and maintain
a frequently refreshed map of the Internet.
The measurement tasks performed by iPlane have two primary
objectives--mapping of the Internet's cluster-level topology and
determination of the properties of each link in the measured topology.
Measurement of link properties incurs higher measurement overhead when
compared to the probe traffic needed to perform a traceroute, but scales
better. With more vantage points, the topology
discovery traffic per node remains the same, but the overhead per node for
measuring link metrics scales down, allowing the same fidelity
for less overhead per node.
The measurement load associated with each technique in our measurement
apparatus is summarized in Table 2. These numbers assume
the availability of 400 PlanetLab nodes at 200 sites.
Our main result is that iPlane can produce an updated map of
the Internet's routing topology every day with as little as Kbps of
probe traffic per vantage point, and update the map of link-level
attributes once every 6 hours with around
Kbps of probe traffic per vantage point, suggesting that iPlane
can refresh the Internet map frequently.
Stationarity of measurements over different intervals over the
course of a day.
iPlane's measurements change over time with changes in the
routes in the Internet and the traffic they carry. We again use PlanetLab
data to estimate whether it suffices for iPlane to update its map
every 6 hours. We are currently in the
process of evaluating the stationarity of path properties for non-PlanetLab
destinations as well.
Over a period of 2 days, we measured the latency and loss rate between
PlanetLab nodes once every 30 minutes. For this study, we used a dataset of
174 PlanetLab sites spanning 29 countries.
In every interval, we computed for each node the
ranking of all other nodes in terms of TCP throughput.
To evaluate the flux in path properties over a 30 minute timescale, we compared these
rankings between adjacent 30 minute intervals. For each PlanetLab node,
we computed the correlation coefficient between the ranking vectors from
adjacent intervals as well as computed the intersection between the top 10
nodes in these ranking vectors. To compare this with the flux in measurements
over longer timescales, we also performed these computations across intervals
1 hour, 2 hours, 4 hours, 8 hours, 16 hours and 24 hours apart.

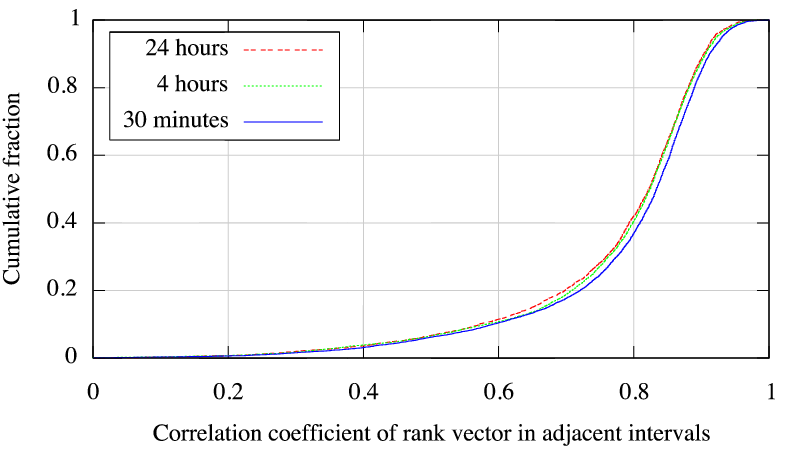

Figure 5(a) shows that the median correlation coefficient
between the rankings is greater than across all intervals from 30
minutes to a day.

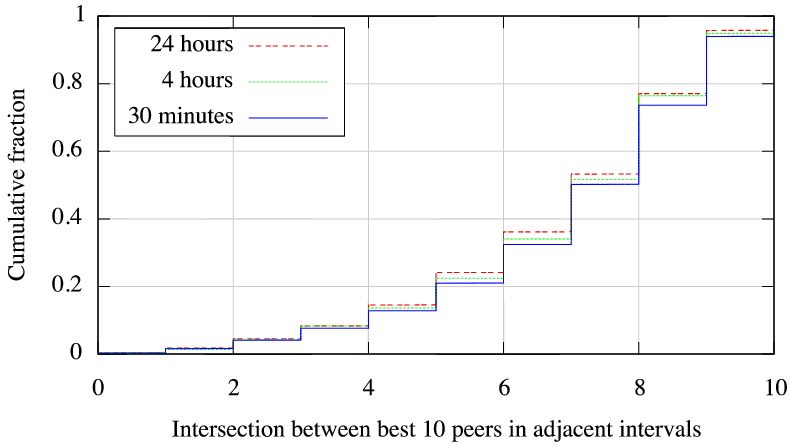

Similarly, Figure 5(b) shows that in the median case, 7
of the top 10 nodes in this ranking are identical on timescales from 30
minutes to a day. Though these results are only for paths between
PlanetLab nodes, they seem to indicate that there is little value
in updating the map more frequently than once every few hours, compared to
once every 30 minutes.
To measure the edges of the Internet, we deployed a modified
BitTorrent client on PlanetLab nodes. As described in
Section 2.4, our infrastructure for measuring the edge
involves the millions of users who frequently participate in the
BitTorrent filesharing application.
Every hour, we crawl well-known public websites that provide links to
several thousand .torrent files to put together a list of
popular swarms. The number of swarms for consideration was
chosen so as to ensure the participation of several of our measurement
vantage points in each swarm. The number of PlanetLab nodes designated
to a swarm is proportional to the number of peers participating in it.
Each PlanetLab node runs a BitTorrent client that we have modified in
several ways to aid in our measurements. First, the modified client
does not upload any data nor does it write any data that it downloads onto
Second, our client severs connections once we have exchanged MB of
data, which suffices for purposes of our measurements. Finally, we
introduce a shadow tracker--a database that coordinates
measurements among all PlanetLab nodes participating in a single
swarm. Instead of operating only on the set of peers returned by the
original tracker for the swarm, our modified client also makes use of
the set of peers returned to any measurement node.
Clients preferentially attempt to connect and download data from peers
that have not yet been measured by a sufficient number of
vantage points. These modifications are crucial for measurement
efficiency and diversity since typical BitTorrent trackers permit
requesting only a restricted set (-) of participating peers
once every minutes or more. Such short lists are quickly exhausted
by our modified client.
During a hour period, our
measurement nodes connected to 301,595 distinct IP addresses, and
downloaded sufficient data to measure the upload bandwidth capacity
These hosts span 3591 distinct ASs, 19,639 distinct BGP prefixes,
and 160 different countries.

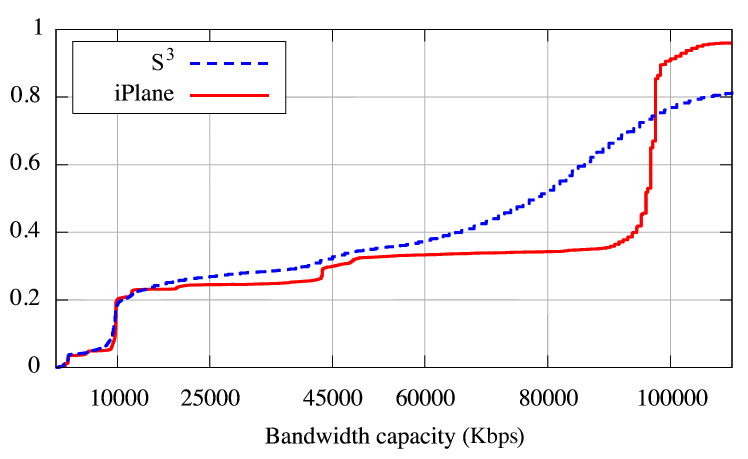

CDFs of estimated bandwidth capacity on paths between PlanetLab
nodes as measured by iPlane and .
Our edge bandwidth capacity measurement relies on inter-arrival times
observed between data packets in the connections we maintain with
BitTorrent peers. We implemented the multiQ  technique
to infer end-to-end bottleneck bandwidth capacity from these
inter-arrival times. Although the accuracy of multiQ presented in
previous studies is encouraging, the unique
properties of PlanetLab motivated us to provide further
validation. To verify that multiQ yields reasonable data with short
TCP traces in the presence of cross traffic on machines under heavy load,
we compared our measurements with those made by .
We setup a test torrent and had our measurement clients running on
PlanetLab nodes participate in this torrent. From this setup, we
opportunistically measured the bottleneck bandwidth capacities between
these PlanetLab nodes.
The dataset we gathered from this experiment had 10,879 paths in
common with measurements made by on the same day.
Figure 6 compares the bandwidth capacities
measured by the two methods. The measurements made by iPlane closely match those of for capacities less than Mbps. At
higher bandwidth capacities, they are only roughly correlated. We
attribute this difference to the use of user-level timestamps by
inter-packet spacing can be rather small for high capacity paths,
user-level timestamps are likely to be inaccurate in the highly loaded
PlanetLab environment. Our measurement setup makes use of kernel-level
timestamps and is therefore less sensitive to high CPU load.
For typical access link bandwidths, the two tools produce similar data;
the value of using BitTorrent is that it works with unmodified clients
that sit behind firewalls or NATs that would drop active measurement
The more discernible steps in the iPlane line in
Figure 6 are at 10Mbps, 45Mbps (T3), and 100Mbps,
which correspond to typical ISP bandwidth classes.

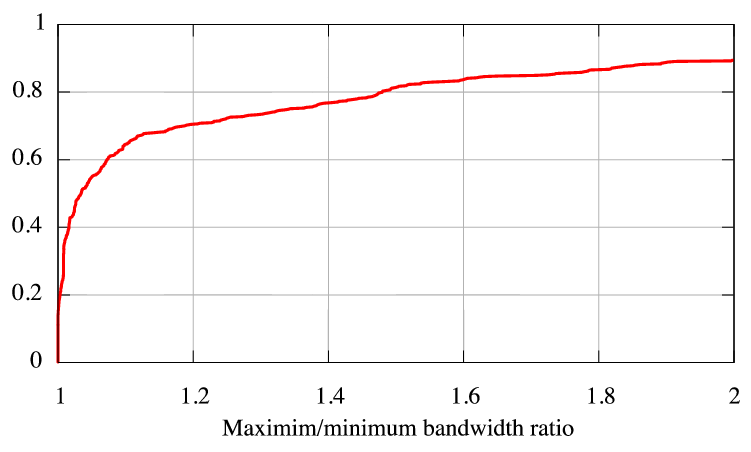

CDF of the ratio of maximum to minimum measured bandwidth capacity for
address prefixes with multiple measurements from the same
vantage point across time.
Although the data produced by our opportunistic strategy is extensive,
it is by no means complete.
Not every client participates in popular torrents.
In Figure 7, we explore the validity
of using BitTorrent measurements to predict the performance
of other clients in the same prefix.
For every prefix in which we have
measurements to multiple end-hosts from the same vantage point, we
compute the ratio of the
maximum to the minimum measured bandwidth capacity. For of
prefixes, the capacities measured differ by less than .
In this section, we show how applications can benefit from using
iPlane. We evaluate three distributed services for potential
performance benefits from using iPlane.

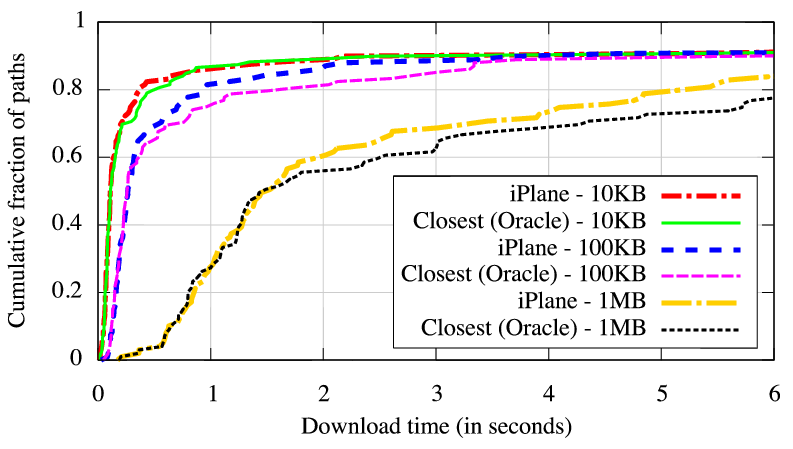

CDF of download times from replicas in the CDN chosen by the
iPlane and from replicas closest in terms of latency. Each download time is
the median of measurements.
Content distribution networks (CDNs) such as Akamai, CoDeeN and
Coral [1,52,16] redirect clients to a nearby replica.
The underlying assumption is that distance determines network
However, there is more to network performance than just distance, or
round trip time.
TCP throughput, for example, depends on both distance and
loss rate [35,5].
Even for small web documents, loss of a SYN or a packet during slow
start can markedly inflate transfer time. A CDN using iPlane can track the RTT, loss rate, and bottleneck capacity from each
replica to the rest of the Internet. The CDN can then arrange for its
name servers to redirect the client to optimize using the
model of its choice.
We emulate a small CDN comprising 30
randomly chosen PlanetLab nodes. Each node serves 3 files of
sizes 10KB, 100KB and 1MB. We use 141 other PlanetLab nodes to emulate
clients. Each client downloads all 3 files from the replica that
provides the best TCP throughput as predicted by the PFTK
model  using iPlane's estimates of RTT and loss
rate, and from the replica closest
in terms of actual measured RTT. Note that this comparison is against
an optimum that cannot be achieved without extensive probing. A real CDN
will only have estimated RTTs available. Figure 8
compares the download times experienced by the clients in either case,
excluding the latency of redirecting to the replica.
Choosing the replica for optimized TCP throughput based on
iPlane's predictions provides slightly better performance than choosing
the closest replica. Though these results are only indicative, they
suggest that iPlane with its ability to provide multi-attribute
network performance data will be more effective than systems
such as OASIS  that simply optimize for RTT.

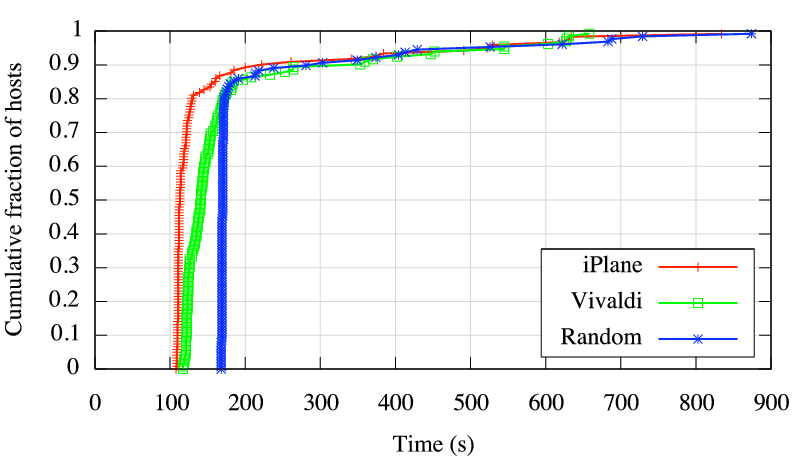

CDFs of BitTorrent download completion times with and without informed peer selection at the tracker.
We next show how iPlane can enable informed peer selection in popular
swarming systems like BitTorrent. In current implementations, a
centralized BitTorrent tracker serves each client a random list
of peers. Each client enforces a tit-for-tat bandwidth reciprocity
mechanism that incents users to contribute more upload bandwidth to
obtain faster downloads. However, the same mechanism also serves to
optimize path selection at a local level--peers simply try uploading
to many random peers and eventually settle on a set that maximizes
their download rate. Because reasoning about peer quality occurs
locally at each client, each client needs to keep a large pool of
directly connected peers (- for typical swarms)
even though at any time only a few of these
(-) are actively engaged in data transfer with the client.
This overhead and consequent delayed convergence
is fundamental: with only local information, peers
cannot reason about the value of neighbors without actively exchanging
data with them.
iPlane's predictions can overcome the lack of prior information regarding
peer performance and can thus enable a clean
separation of the path selection policy from the incentive mechanism.
We built a modified tracker that uses iPlane for informed peer
selection. Instead of returning random peers, the tracker uses the
iPlane's loss rate and latency estimates to infer TCP
throughput. It then returns a set of peers,
half of which have high predicted throughput
and the rest randomly selected. The random subset is
included to prevent the overlay from becoming disconnected (e.g., no
US node preferring a peer in Asia).
We used our modified tracker to coordinate the distribution of a
megabyte file over PlanetLab nodes.
We measured the time taken by each of the peers to
download the file after the seed was started.
Figure 9 compares the download times
observed with iPlane predictions against those of peerings induced
by Vivaldi coordinates  and an unmodified tracker. Informed peer
selection causes roughly of peers to have significantly lower download
Although preliminary, these performance numbers
are encouraging. We believe that better use of information from the
iPlane can lead to even further improvements in performance. Our
selection of as the fraction of random peers was arbitrary, and
we are currently investigating the tradeoff between robustness and
performance, as well as the degree to which these results extend to swarms
with a more typical distribution of bandwidths.

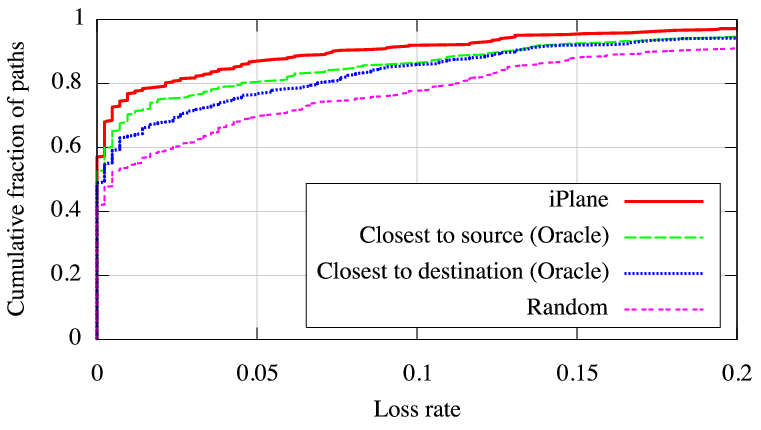

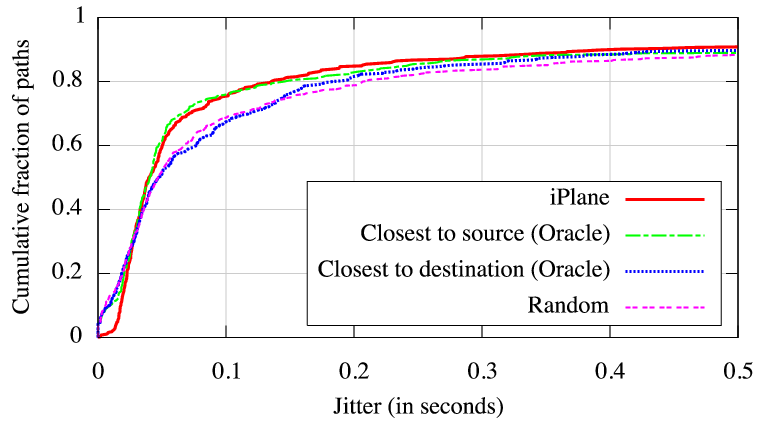

Comparison of (a) loss rate and (b) jitter with and without use of
iPlane for end-to-end VoIP paths.
Voice over IP (VoIP) is a rapidly growing application that requires
paths with low latency, loss and jitter for good performance. Several
VoIP implementations such as Skype  require relay nodes to
connect end-hosts behind NATs/firewalls. Choosing the right relay
node is crucial to providing acceptable user-perceived
Reducing end-to-end latency is important since humans are sensitive to
delays above a threshold. Low loss rates improve sound quality and
reduce throughput consumed by compensating codecs. Measures of
user-perceived sound quality
such as mean opinion score
have been shown to be highly
loss rate and end-to-end delay. Thus, VoIP
applications can benefit from iPlane's predictions of latency and
loss rate in choosing the best possible relay node.
To evaluate iPlane's ability to successfully pick good relay
nodes, we emulated VoIP traffic patterns on PlanetLab. We considered
pairs of PlanetLab nodes, chosen at random, as being
representative of end-hosts participating in a VoIP call. Between each
pair, we emulated a call by sending a KBps UDP packet stream via
another PlanetLab node chosen as the relay node. We tried
different relay options for each pair chosen based on (i) the
iPlane's estimates of latency and loss rate, (ii) latency to the
source, (iii) latency to the destination, and (iv) random choice. The
iPlane-informed choice was obtained by first querying for the
relay options that minimize end-to-end loss and then, choosing the
one that minimized end-to-end delay among these options.
Each emulated call lasted for seconds, and the end-to-end loss
rate and latency were measured. Figure 10(a)
shows that significantly lower loss rates were observed along relay
paths chosen based on iPlane's predictions. Additionally,
Figure 10(b) shows that iPlane also
helps to reduce jitter, which we computed as the standard deviation of
demonstrate the potential for the use of iPlane in VoIP
iPlane bridges and builds upon ideas from network measurement,
performance modeling, Internet tomography, and recent efforts towards
building a knowledge plane for the Internet. We believe that an
Internet-scale instantiation of iPlane is greater than the sum of
its parts, and relate individual contributions to prior work.
Information Plane Clark et al.  pioneered the
broad vision of a knowledge plane to build large-scale,
self-managing and self-diagnosing networks based on tools from AI and
cognitive science. Several research efforts have since
addressed pieces of this problem.
Several efforts have looked at monitoring end-host
and in optimizing
the query processing
engine of the information plane. Examples include
Sophia , PIER , and IrisNet .
The above systems have a different focus than ours.
They manage information
about nodes (e.g., PlanetLab nodes, routers in an ISP, or sensors) under
control of the information plane. We target predictions of path
performance at Internet-scale.
Link Metrics IDMaps  is an early example of a
network information service that estimates the latency between an
arbitrary pair of nodes using a small set of vantage points as
landmarks. Subsequently, Ng and Zhang  discovered that
Internet distances can be embedded on to a low-dimensional Euclidean
space. Such embeddings can be used to predict latencies between a
large number of nodes by measuring latencies from a small number of
vantage points to these nodes--a methodology refined by several
others [54,10,11,44]. A key
limitation of these techniques is that they treat the Internet as a
black box and are only predictive, i.e., they do not explain why, if
at all, their predictions are correct. As a result, they have serious
systematic deficiencies, e.g., a significant fraction of Internet
paths are known to have detours , however, metric
embeddings obey the triangle inequality and will predict no detours.
Our previous work on a structural technique  to
predict Internet paths and latencies, and experiences reported by
independent research groups with respect to latency
prediction , available bandwidth
estimation , and the practical utility of embedding
techniques  echo the need for structural approaches
to predict sophisticated path metrics.
Inference Techniques Chen et al.  proposed an
algebraic approach to infer loss rates on paths between all pairs of
nodes based on measured loss rates on a subset of the paths.
Duffield et al.  proposed a multicast-based approach
to infer link loss rates by observing loss correlations between
Rocketfuel  estimates ISP topologies by performing
traceroutes from a set of vantage points, while the
Doubletree  system efficiently prunes redundant
Our frontier (Section 2.3) algorithm to efficiently target
specific links for measurement is similar in spirit.
Padmanabhan et al.  and
Seshan et al. propose passive measurements at
Web servers and end-hosts respectively to predict path metrics.
PlanetSeer by Zhang et al.  is a failure monitoring
system that uses passive measurements at CDN caches under their
control to diagnose path failures postmortem.
Jaiswal et al.  propose a
``measurements-in-the-middle'' technique to infer end-to-end path
properties using passive measurements conducted at a router.
to these systems that perform passive measurements of existing connections,
we participate in BitTorrent swarms and opportunistically
create connections to existing peers
for the explicit purpose of observing network behavior. Previously,
opportunistic measurements have relied on sprurious traffic in the
iPlane could also
validate and incorporate measurement data from passive measurement
sources, such as widely deployed CDNs, and such integration
is part of future work.
The performance and robustness of overlay services critically depends
on the choice of end-to-end paths used as overlay links. Today,
overlay services face a tension between minimizing redundant probe
overhead and selecting good overlay links. More importantly, they lack an
accurate methods to infer path properties between an arbitrary pair
of end-hosts. In this paper, we showed that it is
possible to accurately infer sophisticated path properties between an
arbitrary pair of nodes using a small number of vantage points and
existing infrastructure. The key insight is to systematically exploit
the Internet's structural properties. Based on this observation, we
built the iPlane service and showed that it is feasible to infer a
richly annotated link-level map of the Internet's routing topology
once every few hours. Our case studies suggest that iPlane can serve
as a common information plane for a wide range of distributed services
such as content distribution, file swarming, and VoIP.
We would like to thank Jay Lepreau, Ratul Mahajan, KyoungSoo Park,
Rob Ricci, Neil Spring and the anonymous OSDI reviewers for their valuable
feedback on earlier versions of this paper. We also thank Peter Druschel
for serving as our shepherd. This research was partially supported by the
National Science Foundation under Grants CNS-0435065 and CNS-0519696.
Akamai, Inc. home page.
D. G. Andersen, H. Balakrishnan, M. F. Kaashoek, and R. Morris.
Resilient Overlay Networks.
In SOSP, 2001.
A best-case network performance model.
Technical report, ATT Research, 1992.
A. Broido and kc claffy.
Analysis of routeViews BGP data: policy atoms.
In Network Resource Data Management Workshop, 2001.
N. Cardwell, S. Savage, and T. Anderson.
Modeling TCP latency.
In INFOCOM, 2000.
M. Casado, T. Garfinkel, W. Cui, V. Paxson, and S. Savage.
Opportunistic measurement: Extracting insight from spurious traffic.
In HotNets, 2005.
Y. Chen, D. Bindel, H. Song, and R. H. Katz.
An algebraic approach to practical and scalable overlay network
In SIGCOMM, 2004.
D. D. Clark, C. Partridge, J. C. Ramming, and J. T. Wroclawski.
A knowledge plane for the Internet.
In SIGCOMM, 2003.
Incentives build robustness in BitTorrent.
In P2PEcon, 2003.
M. Costa, M. Castro, A. Rowstron, and P. Key.
PIC: Practical Internet coordinates for distance estimation.
In ICDCS, 2004.
F. Dabek, R. Cox, F. Kaashoek, and R. Morris.
Vivaldi: A decentralized network coordinate system.
In SIGCOMM, 2004.
B. Donnet, P. Raoult, T. Friedman, and M. Crovella.
Efficient algorithms for large-scale topology discovery.
In SIGMETRICS, 2005.
C. Dovrolis, P. Ramanathan, and D. Moore.
Packet dispersion techniques and a capacity estimation methodology.
IEEE/ACM Transactions on Networking, 2004.
N. G. Duffield, F. L. Presti, V. Paxson, and D. F. Towsley.
Inferring link loss using striped unicast probes.
In INFOCOM, 2001.
P. Francis, S. Jamin, C. Jin, Y. Jin, D. Raz, Y. Shavitt, and L. Zhang.
IDMaps: A global Internet host distance estimation service.
IEEE/ACM Transactions on Networking, 2001.
M. J. Freedman, E. Freudenthal, and D. Mazières.
Democratizing content publication with Coral.
In NSDI, 2004.
M. J. Freedman, K. Lakshminarayanan, and D. Mazieres.
OASIS: Anycast for any service.
In NSDI, 2006.
P. Gibbons, B. Karp, Y. Ke, S. Nath, and S. Seshan.
IrisNet: An architecture for a world-wide sensor web.
IEEE Pervasive Computing, 2(4), 2003.
R. Govindan and H. Tangmunarunkit.
Heuristics for Internet map discovery.
In INFOCOM, 2000.
Q. He, C. Dovrolis, and M. Ammar.
On the predictability of large transfer TCP throughput.
In SIGCOMM, 2005.
N. Hu and P. Steenkiste.
Evaluation and characterization of available bandwidth probing
IEEE JSAC, 21(6), 2003.
N. Hu and P. Steenkiste.
Exploiting Internet route sharing for large scale available
In IMC, 2005.
R. Huebsch, J. M. Hellerstein, N. L. Boon, T. Loo, S. Shenker, and I. Stoica.
Querying the Internet with PIER.
In VLDB, 2003.
M. Jain and C. Dovrolis.
End-to-end available bandwidth: measurement methodology, dynamics,
and relation with TCP throughput.
In SIGCOMM, 2002.
S. Jaiswal, G. Iannaccone, C. Diot, J. Kurose, and D. Towsley.
Formal analysis of passive measurement inference techniques.
In INFOCOM, 2006.
S. Katti, D. Katabi, C. Blake, E. Kohler, and J. Strauss.
MultiQ: Automated detection of multiple bottleneck capacities along
In IMC, 2004.
E. Katz-Bassett, J. P. John, A. Krishnamurthy, D. Wetherall, T. Anderson, and
Towards IP geolocation using delay and topology measurements.
In IMC, 2006.
S. Lee, P. Sharma, S. Banerjee, S. Basu, and R. Fonseca.
Measuring bandwidth between planetlab nodes.
In PAM, 2005.
E. K. Lua, T. Griffin, M. Pias, H. Zheng, and J. Crowcroft.
On the accuracy of embeddings for Internet coordinate systems.
In IMC, 2005.
H. V. Madhyastha, T. E. Anderson, A. Krishnamurthy, N. Spring, and
A structural approach to latency prediction.
In IMC, 2006.
R. Mahajan, N. Spring, D. Wetherall, and T. Anderson.
User-level Internet path diagnosis.
In SOSP, 2003.
T. S. E. Ng and H. Zhang.
Predicting Internet network distance with coordinates-based
In INFOCOM, 2002.
J. Padhye, V. Firoiu, D. Towsley, and J. Kurose.
Modeling TCP throughput: A simple model and its empirical
CCR, 28(4), 1998.
V. N. Padmanabhan, L. Qiu, and H. J. Wang.
Passive network tomography using bayesian inference.
In IMW, 2002.
S. Ren, L. Guo, and X. Zhang.
ASAP: an AS-aware peer-relay protocol for high quality VoIP.
In ICDCS, 2006.
S. Savage, T. Anderson, A. Aggarwal, D. Becker, N. Cardwell, A. Collins,
E. Hoffman, J. Snell, A. Vahdat, G. Voelker, and J. Zahorjan.
Detour: a case for informed Internet routing and transport.
IEEE Micro, 19(1), 1999.
S. Seshan, M. Stemm, and R. Katz.
SPAND: Shared passive network performance discovery.
In USITS, 1997.
Y. Shavitt and E. Shir.
DIMES: Let the Internet measure itself.
CCR, 35(5), 2005.
Y. Shavitt and T. Tankel.
On the curvature of the Internet and its usage for overlay
construction and distance estimation.
In INFOCOM, 2004.
Skype home page.
N. Spring, R. Mahajan, and T. Anderson.
Quantifying the causes of path inflation.
In SIGCOMM, 2003.
N. Spring, R. Mahajan, D. Wetherall, and T. Anderson.
Measuring ISP topologies with Rocketfuel.
IEEE/ACM Transactions on Networking, 2004.
N. Spring, D. Wetherall, and T. Anderson.
Reverse-engineering the Internet.
In HotNets, 2003.
N. Spring, D. Wetherall, and T. Anderson.
Scriptroute: A public Internet measurement facility.
In USITS, 2003.
J. Strauss, D. Katabi, and F. Kaashoek.
A measurement study of available bandwidth estimation tools.
In IMC, 2003.
S. Tao, K. Xu, A. Estepa, T. Fei, L. Gao, R. Guerin, J. Kurose, D. Towsley, and
Improving VoIP quality through path switching.
In INFOCOM, 2005.
L. Wang, K. Park, R. Pang, V. S. Pai, and L. L. Peterson.
Reliability and security in the CoDeeN content distribution
In USENIX, 2004.
M. Wawrzoniak, L. Peterson, and T. Roscoe.
Sophia: An information plane for networked systems.
In HotNets-II, 2003.
B. Wong, A. Slivkins, and E. G. Sirer.
Meridian: A lightweight network location service without virtual.
In SIGCOMM, 2005.
M. Zhang, C. Zhang, V. Pai, L. Peterson, and R. Wang.
PlanetSeer: Internet path failure monitoring and characterization
in wide-area services.
In OSDI, 2004.
H. Zheng, E. K. Lua, M. Pias, and T. Griffin.
Internet routing policies and round-trip-times.
In PAM, 2005.
This document was generated using the
LaTeX2HTML translator Version 2002-2-1 (1.71)
Copyright © 1993, 1994, 1995, 1996,
Computer Based Learning Unit, University of Leeds.
Copyright © 1997, 1998, 1999,
Mathematics Department, Macquarie University, Sydney.
The command line arguments were:
latex2html -split 0 -show_section_numbers -local_icons iplane.tex
The translation was initiated by Harsha Madhyastha on 2006-09-06
